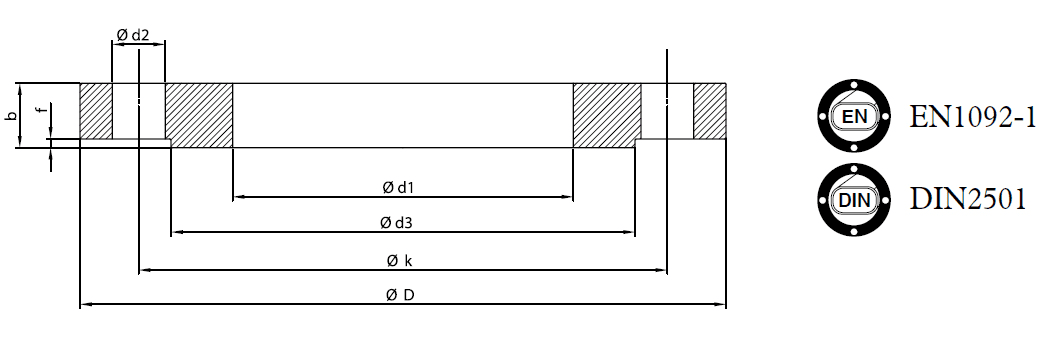

PN 100 Flat Flange (DIN 2501)
PN 100 Flat Flange (DIN 2501) — DIN 2501, EN 1092-1 · PN 100 · ST 37.2 Carbon Steel.
Product overview
Flat flanges manufactured to DIN 2501 and EN 1092-1 in pressure class PN 100, supplied in ST 37.2 carbon steel. Flange thickness (b, mm) and unit mass (kg/pc) follow DIN 2501 dimensional references. Suitable for high-pressure piping systems where a flat-face sealing interface is required.
- Configurable by nominal diameter (DN); PN class and material are fixed across the range - Size range covers DN up to DN 350 - Thickness and weight values are DIN 2501-primary; EN 1092-1 compliance is maintained within that framework
Technical specifications
| Specification | Value |
|---|---|
| Material | ST 37.2 Carbon Steel |
| Standard | DIN 2501, EN 1092-1 |
| Pressure Class | PN 100 |
