PN 10 Flat Flange (DIN 2576)

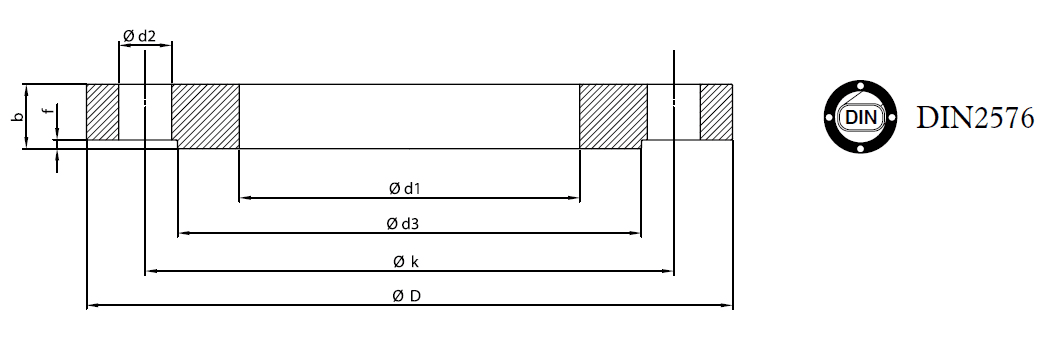

Flat plate flanges manufactured to DIN 2576 in ST 37.2 carbon steel, rated at PN 10. Dimensions and bolt drilling conform to DIN 2576 tables for this pressure class, covering flange outer diameter (D), bolt circle (k), bore (d₁), facing (f), and bolt size and count. Nominal size (DN) is the only configurable parameter; material and pressure class are fixed.

Typical applications include pipe and valve connections in process piping systems operating within PN 10 limits. Reference mass per piece is listed in the technical table alongside full dimensional data. DIN 2573 (PN 6) and welding neck variants are separate product listings.
