DIN 938 Stud - Metal End

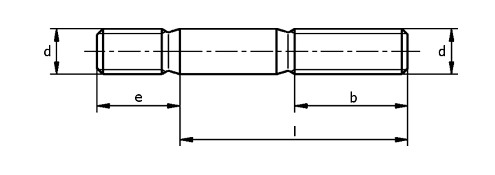

DIN 938 stud with a metal-end engagement length of approximately 1d. The nut-end thread length (b) varies by nominal diameter and overall length, with breakpoints at ≤125 mm, 125–200 mm, and >200 mm. Lengths are generated in 5 mm increments within each range.

Available in steel grades 5.6, 5.8, and 8.8 with uncoated or electrolytic zinc finish, and in stainless steel (uncoated only). Used in bolted assemblies where one end threads into a tapped metal component and the other accepts a nut.
