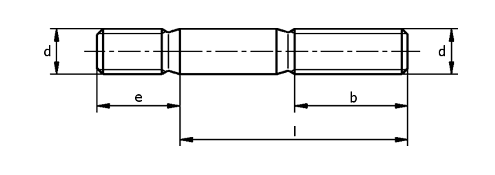

DIN 835 Stud - Metal End

DIN 835 stud with metal end, used for through-bolting into metal components where the engagement end is threaded to 2× nominal diameter. Thread engagement length (b) is determined by the total length (l) according to three bands defined in the standard: ≤125 mm, 125–200 mm, and >200 mm. Catalog lengths are generated in 5 mm increments within each size range, with b derived per the standard table.

- Material and finish: Steel grade 5.8 or 8.8 (uncoated or electrolytic zinc); stainless steel (uncoated only) - Size and length range: Per DIN 835 standard table, varying by nominal diameter - Application: Metal-to-metal fastening where one end remains permanently engaged in a tapped hole
