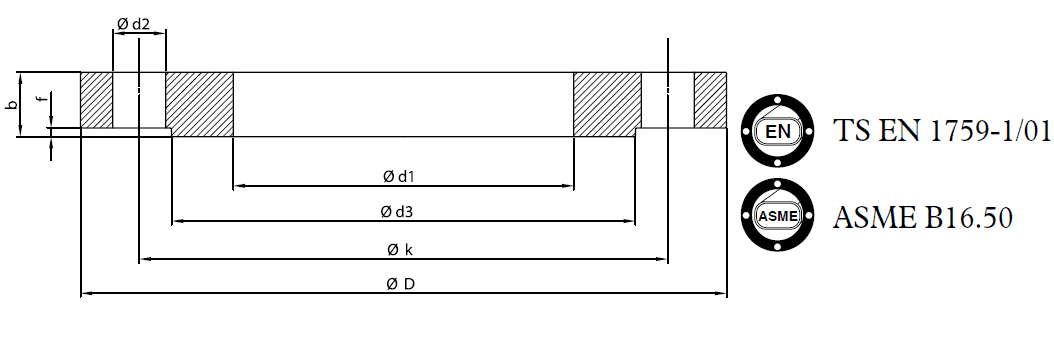

Class 150 RF Flat Flange (ASME B16.5)
Product overview
Forged carbon steel flange conforming to ASME B16.5, Class 150, with a raised face (RF) finish. Designed for low-pressure piping systems where bolted flange connections are required. The raised face provides a defined seating area for gasket compression, suitable for standard gasket types used in process and utility piping.
- Pressure class and face type are fixed at Class 150 RF; NPS is the sole configurable variable - Dimensions and tolerances per ASME B16.5; nominal sizes expressed in NPS with reference mass listed in kg per piece - Applicable in general process piping, water systems, and utility services within Class 150 pressure-temperature ratings
Technical specifications
| Specification | Value |
|---|---|
| Material | Carbon steel (forged) |
| Standard | ASME B16.5 |
| Face Type | RF |
| Pressure Class | Class 150 |
